UL4200A 标签包装说明书要求

2024-04-23
1196 作者:CST

1、产品标签要标如下警示语


如果产品空间不够,可以使用如下标识代替警告语,但该标识须在说明书等材料中再解释说明。



 least 7 mm in width and 9 mm in height.

7C.3 如果产品实在太小,以上图标也印不下,则外包装/标贴/吊牌要标如下警示语(7B章节)要求;

2、 外包装要有警告语(不管产品标签是否有标)

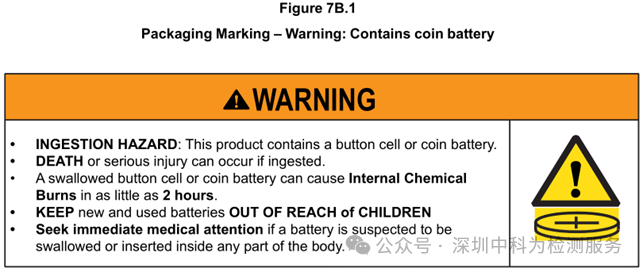

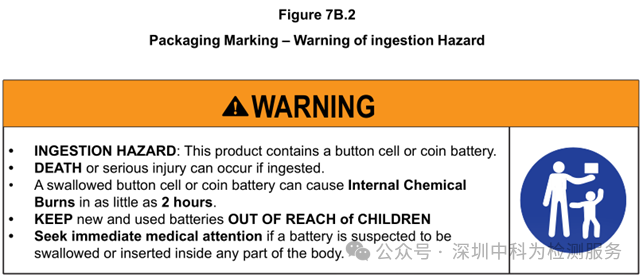

1) 包装空间足够,使用Figure 7B.1或Figure 7B.2 (WARNING至少5mm高,其余文字2.5mm)


上图标least 7 mm in width and 9 mm in height.


上图标:least 8 mm (0.31 in) in diameter.

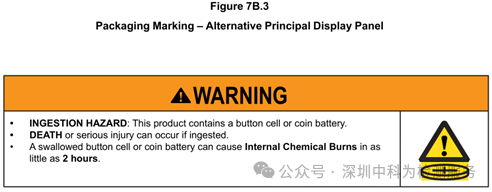

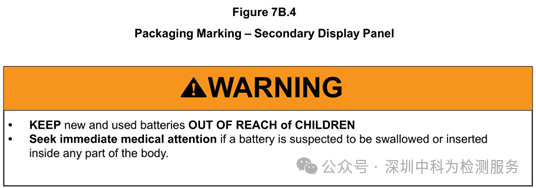

如果包装空间不够,则可以拆分成Figure 7B.3+Figure 7B.4分别标记:


图标least 7 mm in width and 9 mm in height.


2) 包装还要标电池类型和额定电压:Battery type ( e.g., LR44, CR2032); and Nominal voltage.

3、 如果有说明书就要包含7B.1或7B.2的内容,以及如下第9章的所有内容(如果没有说明书,可以标在外包装/吊牌/标签上)

9.1:

a) The statement “Removeand immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate.”

b) The statement “Even used batteries may cause severe injury or death.”

c) The statement “Call a local poison control center for treatment information.”

d) A statement indicating the compatible battery type (e.g., LR44, CR2032).

e) A statement indicating the nominal battery voltage.

f) The statement “Non-rechargeable batteries are not to be recharged.

g) The statement “Do not force discharge, recharge, disassemble, heat above (manufacturer's specified temperature rating) or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.”

9.2:

a) The statement “Ensure the batteries are installed correctly according to polarity (+ and -).”

b) The statement “Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or rechargeable batteries.”

c) The statement “Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time according to local regulations.”

d) The statement “Always completely secure the battery compartment. If the battery compartment

does not close securely, stop using the product, remove the batteries, and keep them away from children.”
